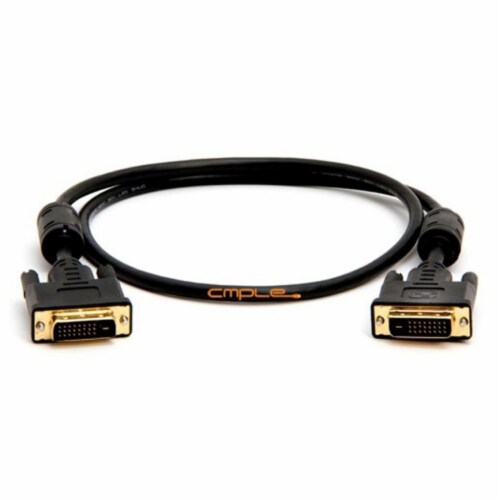

Dvi-D Digital to Dvi-D Digital Dual Link M/M Cable - 3Ft (Gold Plated) Perspective: front
Hover to Zoom

Dvi-D Digital to Dvi-D Digital Dual Link M/M Cable - 3Ft (Gold Plated)

1 unitUPC: 0085041700297
Purchase Options
Prices May Vary

Product Details

DVI-D Digital to DVI-D Digital Dual Link M/M Cable - 3FT (Gold Plated). Digital Visual Interface (DVI) is the standard interface for a high-performance connection between PCs and flat panel displays, digital CRT displays, projectors, and HDTV. The DVI-D Digital Cable delivers the high-performance, high-bandwidth interface needed for video displays of today while leaving headroom for the products of tomorrow. These precision-engineered cables are fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVI-D dual link configuration provides enough bandwidth for resolutions up to 2560x1600 and allows high speed digital transmission up to 9.9 Gbps. Specs and Features: Connector Type: DVI-D male to DVI-D male. Signal Type: Digital. Connector Finish: Gold. Length: 3ft. Pin Configuration: 24 plus 1. Conductor Plating: None. Shielding level: Triple. Shielding type: EMI. Ferrite Cores: Yes. 1080p support: Yes. Bandwidth: Dual Link. Maximum Resolution: 2560x1600. Min Clock Freq.: 21.76 Mhz. Max Clock Freq.: 165 Mhz x 2. Max Thoroughput: 9.9 Gbps. Pixels per cycle: 2. Bits per Pixel: 24. DDWG Compliant: Yes. HDCP Compliant: Yes. ROHS Compliant: Yes. UL Certified: Yes. Item recieved may not match photo or specs shown.
